item version

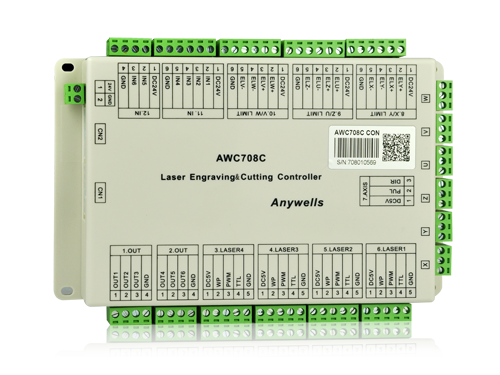

AWC708PLUS

AWC708C PLUShas been improved based on AWC708C LITE and is featured with 6 axes with 4 laser heads, multi-head cutting, seamless transition that can meet user’s requirement to realize the max cutting efficiency.


Servo motor and stepper controlled by 6 axes and 4 laser heads

Single/dual/multi-head control

Power control stand-alone

Various laser sources

Flash drive, network or USB communication

Data output by layers

Customize power/speed/laser mode separately

Auto custom parameters saved

Auto feeding and lifting flat bed

Real-time tracking

Auto blow and focus

Foot switch and security protection

Offline control

Flash drive upgrading

Continue on cutting/engraving since the previous parking point after power cut

Rotary engraving

The mode of engraving and cutting is enabled together


Model AWC708 PLUS
Power Supply DC24V 3A
General Input 6 Roads
General Output 6 Roads
Axis X Y Z U V W
Laser Beam 4 heads/power controlling stand-alone
Laser Sources Fiber laser/CO2 laser
Data Transmission Flash drive, network or USB communication
Highlights

Four heads & six roads

Multi-head moving

Visual recognition & positioning

Metal/nonmetallic materials cutting
