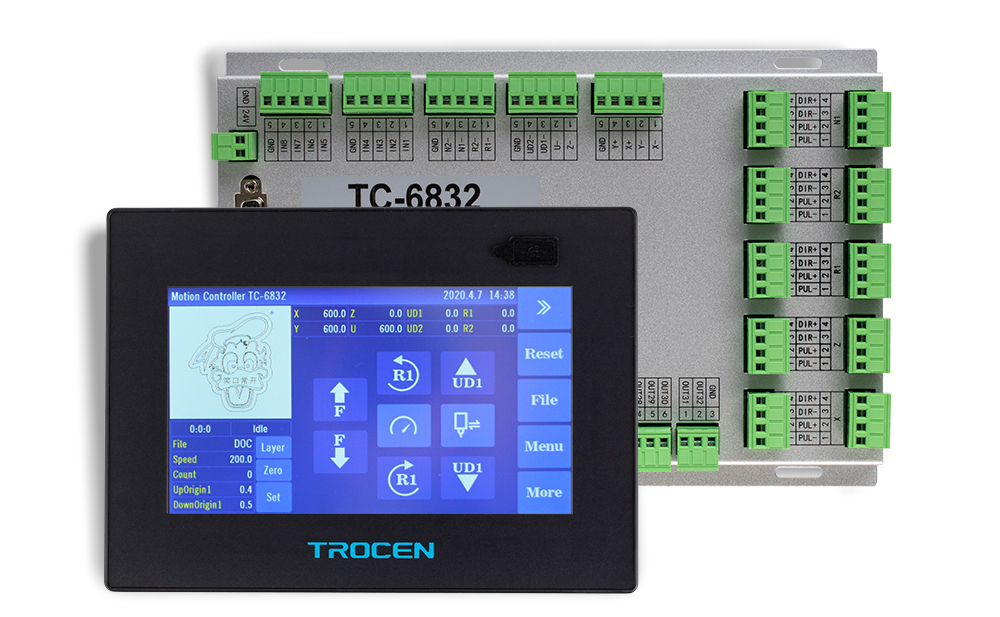

TC-6832

TC6832 is a high-end motion controller developed for the blade cutting industry. It integrates spindle cutting, vibrating knife cutting, V-groove cutting, round knife cutting, red light origin, brushes, punching, cutting and other functions.

Ø 7-inch TFT touch screen, intuitive and simple operation interface

Ø New 32-bit high-speed DSP to make the system run faster and more stable;

Ø Easy to operate, saving time after training;

Ø Support U disk offline file preview function, real-time display of cutter head movement track;

Ø Device parameters can be set completely away from the PC;

Ø All optocouplers completely isolate external electromagnetic interference, and the shaft signal is a differential signal input, with strong anti-static performance, making the system work more stable and reliable;

Ø Support USB2.0 high-speed interface, U disk read and write files are more stable, can identify various brands of U disk;

Ø Support network communication and USB communication, the transmission speed is faster and more stable;

Ø All function debugging is simple, convenient and easy to operate;

Ø From power-on reset, manual axis speed, lock screen, emergency stop processing, three-color status indication and other systems to strengthen the safety protection of people;

Ø One-key continuous cutting, convenient to continue cutting after the processing file is interrupted in any way;

Ø When adjusting the cutting effect, there are few setting parameters, and the user is easy to hold;

Ø Complete functions, V groove cutting, layered cutting, automatic identification and punching, intelligent partition adsorption and detection platform;

Ø Support dispensing function;

Ø Support the installation of multiple different knives at the same time;

Ø Support over size cutting, compatible with file formats generated by various popular typesetting software;

Ø Intelligent diagnosis system self-fault.

Replace Model

TC6828PRO, and other brands of vibration knife system

Power

DC24V,3A

Input

8 roads

Output

32 roads

Control axis

10 axis

Control head

3 heads

Accuracy

±0.01mm

Support software

TroCut CAD

Support graphics format

G-code,AI,SVG,PDF,DXF,PLT,DST,DSB,UD6,etc

Support system

Windows(Window XP、Vista、Win7、Win8、Win10 )operating system
