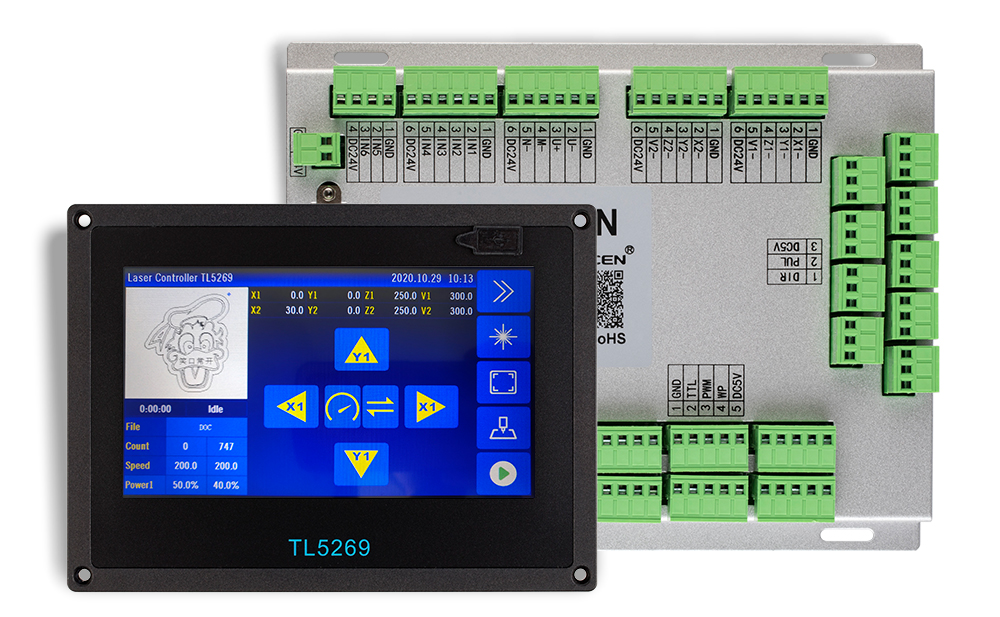

TL-5269

TL5269 has the functions of 9-axis, 6-head laser independent control, single-beam 3 heads mutual movement, double-beam asynchronous, automatic feeding function.

Ø 7-inch TFT LCD touch screen, intuitive and simple operation interface

Ø Using a new 32-bit high-speed DSP to make the system run faster and more stable;

Ø Product is easy to operate, saving time after training;

Ø Support U disk offline file preview function, real-time display of laser head movement track;

Ø Device parameters can be set completely away from the PC;

Ø All optocouplers isolate external electromagnetic interference, and the system works stably and reliably;

Ø Support multi-languauge;

Ø Support USB2.0 high-speed interface, U disk read and write files are more stable, can identify various brands of U disk;

Ø Support network communication and USB communication, the transmission speed is faster and more stable;

Ø Intelligent diagnosis system self-fault;

Ø One key to switch the way of manually moving the axis;

Ø A variety of humanized positioning modes and return modes, which are convenient for customers with different habits to operate the machine;

Ø One-key continuous cutting, convenient to continue cutting after the processing file is interrupted in any way;

Ø When adjusting the cutting effect, there are few setting parameters, and the user is easy to hold.

Ø Support automatic feeding function;

Ø Support over size cutting;Compatible with file formats generated by various popular typesetting software

Ø Three heads of single beam move each other, double beams are asynchronous, short avoidance time for large-size graphics and double beams at the same time, seamless splicing;

Replace Model

TL5200PRO and other brands of Asynchronous laser machine control system

Power

DC24V,3A

Input

6 roads

Output

12 roads

Control axis

9axis

Control head

6 heads

Support Laser

CO2laser tube,RF tube

Control Laser energy

0-100%   0.1%Continuously adjustable

Support graphics format

G-code,AI,SVG,PDF,DXF,PLT,DST,DSB,UD5,BMP,JIF,JPG,PNG etc

Support software

LaserCAD ,lightburn

(Plugin support CORELDRAW,AUTOCAD, Adobe Illustrator)

Support system

Windows(Window XP、Vista、Win7、Win8、Win10 )operating system
